产品展示

精密运算放大器

产品型号	带宽 (MHz)	供电电流 /通道 (mA)	供电电压 (V)	通道数	最大失调电压 (µV)	最大失调温漂 (µV/℃)	最大偏流 (pA)	共模输入范围	状态	备注
ZJA3192	10	1.6	4.5至36	2	25	0.8	20	(-Vs)至(+Vs)	送样	RRIO
ZJA3092	6	1.42	4.5至36	2	25	1.2	20	(-Vs)至(+Vs)	量产	RRIO
ZJA3000	3	1.0	4.5至40	1,2,4	35	0.5	25	(-Vs)至(+Vs)-3	量产	/
ZJA3001	3	1.0	4.5至40	1,2,4	35	0.5	25	(-Vs)+2至(+Vs)-2	量产	/
ZJA3008	1.3	0.5	4.5至40	2	10	0.5	25	(-Vs)至(+Vs)-3	量产	/
ZJA3018	1.3	0.5	4.5至40	2	10	0.5	25	(-Vs)至(+Vs)-3	量产	OVP
ZJA3512	7	2.0	9至36	2	75	2	80	(-Vs)+1.5至(+Vs)-2	量产	JFET
ZJ O2177	2	0.55	4至40	2	180	-	-	(-Vs)至(+Vs)-1.5	量产	/
ZJA3216/3217	20	1.8	2.7至5.5	1,2,4	50	1	3	(-Vs)至(+Vs)	量产	RRIO
ZJA3206/3207	10	0.9	2.7至5.5	1,2,4	50	1	3	(-Vs)至(+Vs)	量产	RRIO
ZJA3202/3203	5	0.5	2.7至5.5	1,2,4	50	1	3	(-Vs)至(+Vs)	量产	RRIO
ZJA3226/3227	10	0.9	2.7至5.5	1,2	400	1	3	(-Vs)至(+Vs)	量产	RRIO
ZJA3236/3237	20	1.8	2.7至5.5	1,2,4	400	1	3	(-Vs)至(+Vs)	量产	RRIO
ZJA3222/3223	5	0.5	2.7至5.5	1,2,4	400	15	3	(-Vs)至(+Vs)	量产	RRIO

仪表放大器

26
to 150

≤25

1 to 2 3 to 5 6 to 10

ZJA3600/3618

ZJA3601/3619

ZJA3622/3628

ZJA3620

Supply voltage: 4.8 V to 36 V
ISY/ch (typ): 3.3 mA

Supply voltage: 4.8 V to 36 V
ISY/ch (typ): 3.3 mA

Supply voltage : 4.8 V to 36 V
ISY/ch (typ): 3.3 mA

Supply voltage : 4.6 V to 36 V
ISY/ch (typ): 1.3 mA

▲

▶

Pin compatible with AD620

Cost optimized

Pin compatible with AD8221

Low power

ZJA3611/3609

Supply voltage : 4.8 V to 36 V
ISY/ch (typ): 3.3 mA, G≥10

ZJA3610/3608

Supply voltage: 4.8 V to 36 V
ISY/ch (typ): 3.3 mA, G≥10

全差分放大器

ZJA3100	高精度高速全差分放大器

数据手册下载 -PDF	样片申请订购

差动放大器

ZJA3676/7	低功耗、宽输入范围单位增益差动放大器

数据手册下载 -PDF	样片申请订购

ZJA3678/9	低功耗、宽输入范围0.5/2倍增益差动放大器

数据手册下载 -PDF	样片申请订购

ZJA3669	高共模电压差动放大器

数据手册下载 -PDF	样片申请订购

12-bit 14-bit 16-bit 18-bit 20-bit

14-bit, 600 kSPS,

Pseudo differential unipolar

ZJC2007

3 MSPS

2 MSPS

1 MSPS

600

500

400

350

300

250

200

ZJC2103-14

ZJC2017

Single-channel

Multi-channel

ZJC2011

ZJC2101-16

ZJC2012

ZJC2103-16

ZJC2013

ZJC2105-16

16-bit, 250 kSPS,

Pseudo differential unipolar

16-bit, 250 kSPS,

Pseudo differential bipolar

4 ch, 16-bit, 250 kSPS,

Fully differential

8 ch, 16-bit, 250 kSPS,

Pseudo differential

4 ch, 16-bit, 250 kSPS,

Pseudo differential

16-bit, 250 kSPS,

Fully differential

ZJC2010

ZJC2101-18

ZJC2014

ZJC2103-18

ZJC2015

ZJC2105-18

18-bit, 200 kSPS,

Fully differential

18-bit, 200 kSPS,

Pseudo differential unipolar

18-bit, 200 kSPS,

Pseudo differential bipolar

4 ch, 18-bit, 200 kSPS,

Fully differential

8 ch, 18-bit, 200 kSPS,

Pseudo differential

4 ch, 18-bit, 200 kSPS,

Pseudo differential

ZJC2001

ZJC2100-16

ZJC2002

ZJC2102-16

ZJC2003

ZJC2104-16

16-bit, 500 kSPS,

Pseudo differential unipolar

16-bit, 500 kSPS,

Pseudo differential bipolar

4 ch, 16-bit, 500 kSPS,

Fully differential

8 ch, 16-bit, 500 kSPS,

Pseudo differential

4 ch, 16-bit, 500 kSPS,

Pseudo differential

16-bit, 500 kSPS,

Fully differential

ZJC2000

ZJC2100-18

ZJC2004

ZJC2102-18

ZJC2005

ZJC2104-18

18-bit, 400 kSPS,

Pseudo differential unipolar

18-bit, 400 kSPS,

Pseudo differential bipolar

4 ch, 18-bit, 400 kSPS,

Fully differential

8 ch, 18-bit, 400 kSPS,

Pseudo differential

4 ch, 18-bit, 400 kSPS,

Pseudo differential

18-bit, 400 kSPS,

Fully differential

14-bit, 300 kSPS,

Pseudo differential unipolar

14-bit, 300 kSPS,

Pseudo differential bipolar

8 ch, 14-bit, 300 kSPS,

Pseudo differential

▲

▶

ZJC2018

14-bit, 600 kSPS,

Pseudo differential bipolar

20-bit, 350 kSPS,

Fully differential

ZJC2020

ZJC2102-14

8 ch, 14-bit, 600 kSPS,

Pseudo differential

8 ch, 1 MSPS,

Pseudo differential

ZJC2102-12

ZJC2008

16-bit, 2 MSPS,

Fully differential

16-bit, 1 MSPS,

Fully differential

16-bit, 2 MSPS,

Fully differential

ZJC2400-20

20-bit, 1.8 MSPS,

Fully differential

ZJC2401-20

20-bit, 1 MSPS,

Fully differential

ZJC2401-18

18-bit, 1 MSPS,

Fully differential

ZJC2400-18

ZJC2401-16

ZJC2400-16

ZJC2039

ZJC2029

12-bit, 2 MSPS,

Single-ended unipolar

12-bit, 3 MSPS,

Single-ended unipolar

ZJR1003	微功耗、低噪声、低温漂、精密电压基准源

数据手册下载 -PDF	样片申请订购

ZJR1000	低噪声、低温漂、精密电压基准源

数据手册下载 -PDF	样片申请订购

ZJR1001

ZJR1002

微功耗、低噪声、低温漂、精密电压基准源

数据手册下载 -PDF

样片申请订购

ZJR1302	微功耗精密电压基准源

数据手册下载 -PDF	样片申请订购

ZJR1004	宽供电电压范围、低功耗、高精度、精密电压基准源

数据手册下载 -PDF	样片申请订购

12-bit 14-bit 16-bit 18-bit

8

4

1

8 ch, 12 bit,

No embedded voltage ref

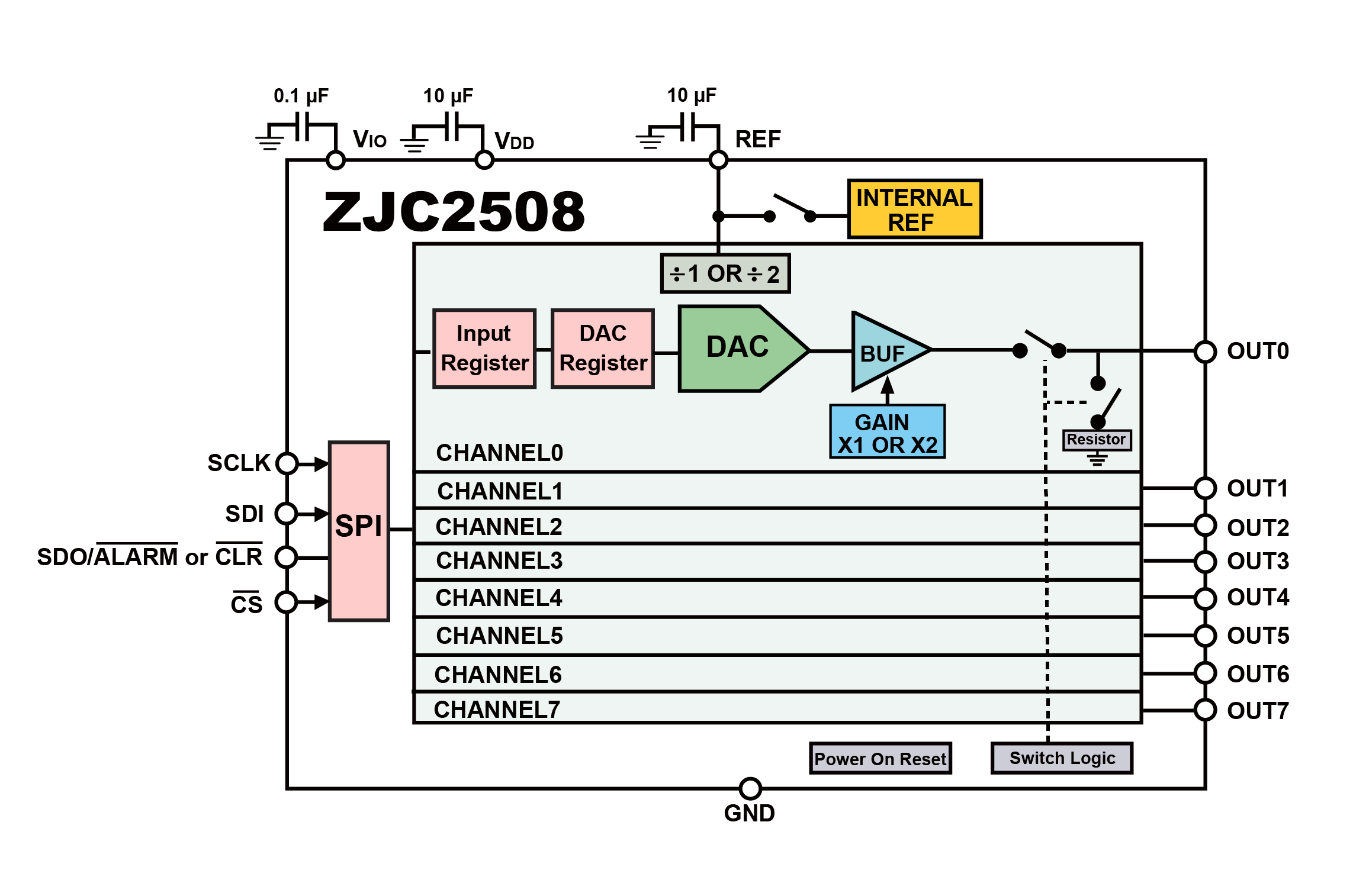

ZJC2508-12

8 ch, 12 bit,

Embedded voltage ref

8 ch, 16 bit,

Embedded voltage ref

8 ch, 16 bit,

No embedded voltage ref

1 ch, 14 bit,

Unipolar voltage output

1 ch, 14 bit,

Bipolar voltage output

1 ch, 18 bit,

Unipolar voltage output

1 ch, 18 bit,

Bipolar voltage output

1 ch, 16 bit,

Unipolar voltage output

1 ch, 16 bit,

Bipolar voltage output

8 ch, 16 bit,

Embedded voltage ref

8 ch, 12 bit,

Embedded voltage ref

ZJC2508-16

ZJC2676-12

ZJC2676-12R

ZJC2676-16

ZJC2676-16R

ZJC2542/2544-14

ZJC2542/2544-16

ZJC2542/2544-18

ZJC2541/2543-14

ZJC2541/2543-16

ZJC2541/2543-18

▲

▶

ZJC2686-16R

4 ch, 16 bit,

Embedded voltage ref

产品型号	通道数	抽头数	带宽 (MHz)	端到电阻 (kΩ)	供电电压 (V)	接口	温度系数 (ppm/℃)	封装

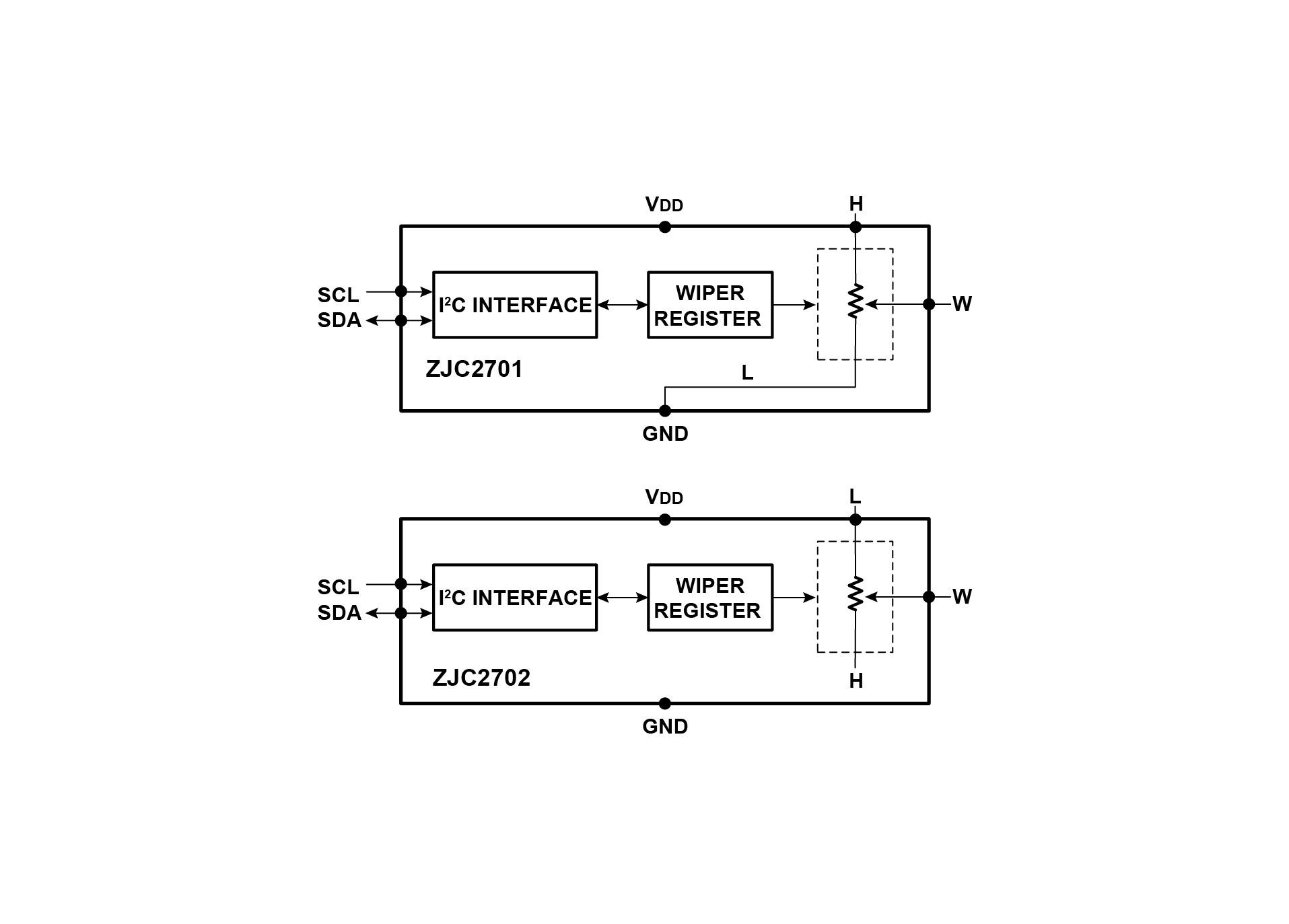

ZJC2701/2	1	128	3.5/0.35	10/100	2.7至5.5	I2C	20	SC70-6
ZJC2717	1	128	3.5/0.35	10/100	2.7至5.5	I2C	20	SC70-6

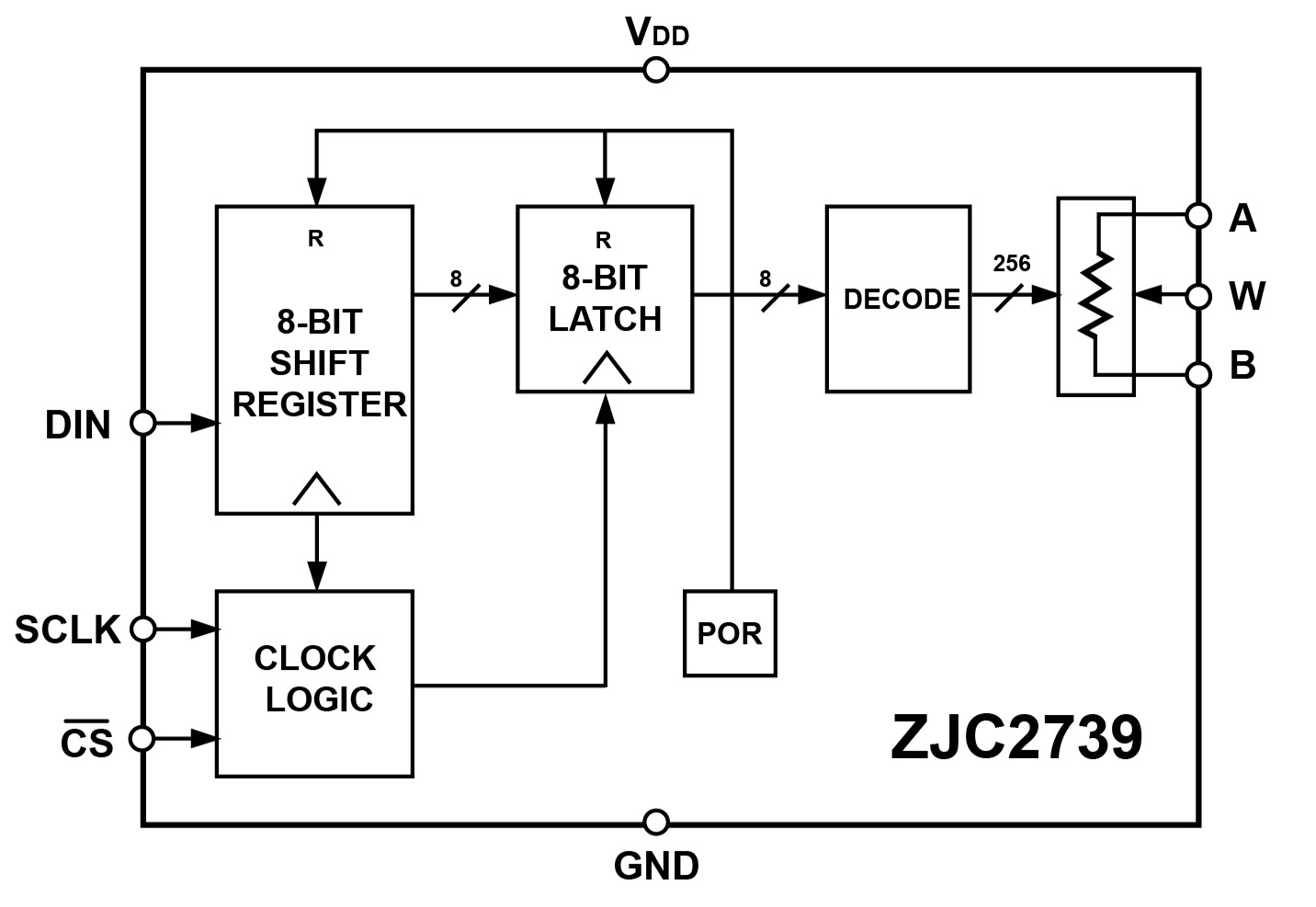

ZJC2739	1	256	3/0.4	10/100	2.7至5.5	SPI	±35	MSOP-8, TSOT23-8, SOIC-8
ZJC2740	1	256	3/0.4	10/100	2.7至5.5	SPI	±35	SOIC-8
ZJC2741	1	256	3/0.4	10/100	2.7至5.5	SPI	±35	TSOT23-8
ZJC2742	2	256	3/0.4	10/100	2.7至5.5	SPI	±35	SOIC-14
ZJC2743	4	256	3/0.4	10/100	2.7至5.5	I2C	±35	QFN-16

产品型号	配置	特点	RON (Ω)	最大关断漏电 (nA)	供电电压 (V)
ZJG4408	8:1多路复用器	免闩锁	10.2	0.1	9至44
ZJG4409	差分4:1多路复用器
ZJG4418	8:1多路复用器	免闩锁	86	0.1	9至50
ZJG4419	差分4:1多路复用器
ZJG4428	8:1多路复用器	免闩锁	270	0.5	10至36
ZJG4429	差分4:1多路复用器
ZJG4438	8:1多路复用器	±50 V过压保护, 免闩锁	270	0.5	10至36
ZJG4439	差分4:1多路复用器
ZJG4411	4路单刀单掷(4*SPST)开关	免闩锁	4.8	0.5	9至50
ZJG4413
ZJ G4469	单刀双掷(SPDT) 开关	免闩锁	10.7	0.2	9至50
ZJG4452	4路单刀双掷(4*SPDT) 开关	免闩锁	10	0.5	9至50

ZJM5400	四电阻匹配网络

数据手册下载 -PDF	样片申请订购

高精度高速全差分放大器

低功耗、宽输入范围单位增益差动放大器

低功耗、宽输入范围0.5/2倍增益差动放大器

高共模电压差动放大器

微功耗、低噪声、低温漂、精密电压基准源

低噪声、低温漂、精密电压基准源

微功耗、低噪声、低温漂、精密电压基准源

微功耗精密电压基准源

宽供电电压范围、低功耗、高精度、精密电压基准源

四电阻匹配网络
